Tuesday, December 27, 2011

TIA Portal v11 SP2 update

DESCRIPTION:

The Service Packs are applicable to the following products:

  • STEP 7 Professional V11 / V11 SP1
  • STEP 7 Basic V11 / V11 SP1

New features and changes compared to earlier versions are described in the delivery release for STEP 7 V11 SP2 (entry ID 56771572).

You will find the WinCC V11 Service Pack 2 at entry ID 56897511.

Installation instructions

  • If WinCC V11 is installed on the system, it must contain at least Service Pack 1
  • Service Pack 2 of WinCC Basic V11 is part of STEP 7 Professional/Basic V11 SP2.

Security note

Due to security issues we recommend updating the Automation Licensing Manager supplied with this product. The update is available for download at: 114358

STEP 7 Professional V11:

This free download contains the Service Pack 2 to upgrade existing installations of STEP 7 Professional V11 / V11 SP1; it can only be installed, if STEP 7 Professional V11 / V11 SP1 is installed already.
The download is not suitable for new installations (e.g. on Windows 7 64-bit operating systems). Here you require the STEP 7 Professional V11 SP2 Trial DVD (order no. 6ES7822-1AA01-0YA7).

SIMATIC_STEP_7_Professional_V11_0_SP2.001 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11_0_SP2.002 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11_0_SP2.003 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11_0_SP2.004 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11_0_SP2.005 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11_0_SP2.006 ( 454581 KB )

SIMATIC_STEP_7_Professional_V11_0_SP2.exe ( 1823 KB )

The download is subdivided into several files. Please download all the files into the same folder and then execute the file ending with .exe. The parts will then be combined and you can execute the setup.

STEP 7 Basic V11:

This free download contains the Service Pack 2 to upgrade existing installations of STEP 7 Basic V11 / V11 SP1; it can only be installed, if STEP 7 Basic V11 / V11 SP1 is installed already.
For new installations (e.g. on Windows 7 64-bit operating systems) you require the STEP 7 Basic Single -> Floating License package (order no. 6ES7822-0AA01-0YC5).
SIMATIC_STEP_7_Basic_V11_0_SP2.001 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11_0_SP2.002 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11_0_SP2.003 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11_0_SP2.004 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11_0_SP2.005 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11_0_SP2.006 ( 70862 KB )

SIMATIC_STEP_7_Basic_V11_0_SP2.exe ( 1823 KB )

The download is subdivided into several files. Please download all the files into the same folder and then execute the file ending with .exe. The parts will then be combined and you can execute the setup.

Useful Link-:
1) Original Link.

2) Service Pack 2 for STEP 7 V11 Released for Delivery

3) System manual download (v11 SP2)


Sunday, August 14, 2011

TIA Portal v11 SP1 (Newer Version Available)

DESCRIPTION:

The Service Packs are applicable to the following products:

  • STEP 7 Professional V11
  • STEP 7 Basic V11

New features and changes compared to earlier versions are described in the delivery release for STEP 7 V11 SP1 (entry ID 51774795)

Installation instructions

  • If your installation comprises several products based on the TIA Portal (e.g. STEP 7 V11 and WinCC V11), all the products must be upgraded to Service Pack 1 (see entry ID 51706933)
  • Service Pack 1 of WinCC Basic V11 is part of STEP 7 Professional/Basic V11 SP1.
  • We recommend to install the latest update after installing the Service Pack 1 (see entry ID 52258326)

STEP 7 Professional V11:
Free download of Service Pack 1 for STEP 7 Professional V11:

SIMATIC_STEP_7_Professional_V11.001 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11.002 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11.003 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11.004 ( 665600 KB )

SIMATIC_STEP_7_Professional_V11.005 ( 289279 KB )

SIMATIC_STEP_7_Professional_V11.exe ( 1811 KB )

This free download contains the Service Pack 1 for STEP 7 Professional V11 and can only be installed, if STEP 7 Professional V11 is installed already.
The download comprises several files. Please download all the files first and then execute the file ending with .exe. After that the parts will be joined together and you can execute the Setup.

STEP 7 Basic V11:
Free download of Service Pack 1 for STEP 7 Basic V11:

SIMATIC_STEP_7_Basic_V11.001 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11.002 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11.003 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11.004 ( 665600 KB )

SIMATIC_STEP_7_Basic_V11.005 ( 233711 KB )

SIMATIC_STEP_7_Basic_V11.exe ( 1811 KB )

This free download contains the Service Pack 1 for STEP 7 Basic V11 and can only be installed, if STEP 7 Basic V11 is installed already.
The download comprises several files. Please download all the files first and then execute the file ending with .exe. After that the parts will be joined together and you can execute the Setup.

Full download at Siemens website http://support.automation.siemens.com/WW/view/en/51696778

Thursday, August 11, 2011

New Features for S7-1200 and Step 7 V11
Go to beginning

Step 7 V11 and the S7-1200 CPU firmware V2 provide additional capabilities and features
  • To allow you more control of how you define the data in your user program, S7-1200 provides additional data types, such as pointers, indexed arrays, and structures.
  • The instruction set has been expanded. New instruction include the following:
  1. Communication instruction include S7 communication GET and PUT instructions, Distributed I/O RDREC, WRREC, and RALRM instructions, new PROFINET TUSEND and TURCV instructions, and Teleservice GPRS and TM_MAIL instructions.
  2. A new Calculator instruction allows you to enter an equation directly into your LAD or FBD program.
  3. Additional Interrupt instruction allow you to set and query time delay and cyclic interrupts.
  4. You can also use the new diagnostic instruction to read the LED status or other diagnostic information about modules and devices.
  5. There is also a new easy-to-use PID_3Step instruction.
  • PROFINET UDP is now supported. UDP provides a "broadcast" communication functionality
  • The S7-1200 CPU is a PROFINET IO controller.
  • Step 7 V11 provides an "undo" function.
  • Step 7 provides STOP and RUN button on the toolbar for stopping nd starting the CPU.
  • The "force table" is separate from the watch table and allows you to force inputs and outputs.
  • You an copy-protect your user program or code blocks by binding them to a specific CPU or memory card.
  • You can capture and restore various states for your code blocks.
  • You can capture the values of a DB to set those values as the start values.
  • With a click of a button, you can export the data from tables in STEP 7 into Microsoft Excel. You can also use CTRL-C and CTRL-V to copy and paste between Step 7 and Microsoft Excel.
  • Disconnecting I/O devices from the configured network without losing the configured devices or having to reconfigure the network.
  • Changing the assignment of a DB for an FB or an instruction (such as for changing the association of an FB from a single-instance DB to a multi-instance DB).



For more information, check out Siemens website at http://support.automation.siemens.com/WW/view/en/10805148/130000

Wednesday, June 8, 2011

How do you establish MODBUS-RTU communication with STEP 7 Basic V10.5 for the SIMATIC S7-1200?Go to beginning
Display part number

Description
The SIMATIC S7-1200 enables point-to-point communication using the communication modules CM 1241 RS485 and CM 1241 RS232.
You can add up to three communication modules to each S7-1200 controller.
Using the MODBUS library integrated in STEP 7 Basic V10.5 you can define each communication module as a MODBUS master or slave.
If you define the CM 1241 RS232 as MODBUS master, then there is a physical limitation that permits communication with one slave only.
If you define the CM 1241 RS485 as MODBUS master, then it is possible to communicate with up to 32 slaves one after the other.
We will take a sample project to describe the configuration procedure in STEP 7 Basic V10.5 for communication with multiple slaves using the CM 1241 RS485.

Instructions
We have taken the example of MODBUS communication between a master and a slave.
There is alternate writing to the holding register of the slave (function code 16) and reading from the holding register of the slave (function code 03).
Since the RS485 has a two-wire (half-duplex) interface, writing and reading must be conducted consecutively.
By the same principle, the address of the slave to be addressed can be changed between two actions (here writing and reading), thus making it possible to exchange data with multiple slaves.


Fig. 01

The CM 1241 RS485 communication modules are linked to each other using a PROFIBUS cable.
You can continue with the PROFIBUS cable to connect up to 31 additional MODBUS slaves to the master.
The configuration is done in STEP 7 Basic V10.5 SP2. The program code is transferred to the controllers with the switch CSM 1277.

MB_COMM_LOAD
The configuration block MB_COMM_LOAD is required on both sides (master and slave) for MODBUS communication.


Fig. 02

The MB_COMM_LOAD block is used to select the communication module, set the communication parameters and establish the connection with the master or slave parameters.
The MB_COMM_LOAD block must be called in the first program cycle (by activating the system marker M1.0 in the hardware settings or by a call in Startup OB 100).
After inserting the communication module in the hardware configuration you can select the symbolic name of the communication module at the PORT parameter.
The communication parameters BAUD (transmission rate) and PARITY (parity) must be identical for all nodes. The port configuration of the RS485 interface in the STEP 7 V10.5 device view is irrelevant here.
The instance data block of the master or slave block is transferred at the MB_DB parameter and thus defines the communication module (PORT parameter) as MODBUS master or slave.

MB_MASTER
You use the MB_MASTER block to define the communication module selected with the MB_COMM_LOAD configuration block as MODBUS master.


Fig. 03

The MB_MASTER block is used to select the MODBUS slave to be addressed, select the function code (read/write, MODBUS start address and data length) and define the local data storage area.
The communication is triggered by the REQ parameter.
The MODBUS-RTU station address to be addressed is transferred at the MB_ADDR parameter.
The MODE parameter specifies the direction of transmission ("0" = read, "1" = write or additional diagnostics functions).
The MB_MASTER block must be called in the first program cycle (by activating the system marker M1.0 in the hardware settings or by a call in Startup OB 100).
The DATA_ADDR and DATA_LEN parameters are for setting the MODBUS start address and the data length (bits or words depending on the MODBUS start address selected).
The DATA_PTR parameter defines the local receive and send data storage areas of the master. DATA_PTR must refer to a global data block created with the "Symbolic access only" option disabled. When multiple elements are to be transferred (bits or words), the symbolic name of an array or struct that covers this data storage area (DATA_ADDR and DATA_PTR) must be transferred here.

MB_SLAVE
You use the MB_SLAVE block to define the communication module selected with the MB_COMM_LOAD configuration block as MODBUS slave.


Fig. 04

The MB_SLAVE block is used to define the MODBUS-RTU station address and specify the local data storage area for the holding register data transfer.
The local MODBUS-RTU station address is transferred at the MB_ADDR parameter. The MODBUS master identifies the slave with this.
The MB_HOLD_REG parameter defines the local holding register data storage area of the slave. MB_HOLD_REG must refer to a global data block created with the "Symbolic access only" option disabled. When multiple registers (words) are to be transferred, the symbolic name of an array or struct that covers the specified data volume of the master (DATA_ADDR and DATA_PTR) must be transferred here. The first word of this array or struct corresponds to the MODBUS holding register start address 40001.

The parameters can be switched with the inputs and outputs of the blocks or by accessing the instance data block concerned.

Sample project
In the master project, the alternate writing to / reading from the holding register of the slave is done using a sequencer.


Fig. 05

The MB_COMM_LOAD configuration block is called in the initialization step 0.
In Step 1 the MB_Master with the communication parameters for writing to the slave (MODE = 1) is called and executed (REQ = 1).
The transition to Step 2 is made by the positive (DONE) or negative (ERROR) confirmation from the MB_MASTER.
The transition resets the execution of the MB_MASTER (REQ = 0).
In Step 2 the communication parameters for reading from the slave (MODE = 0) are written using the MB_MASTER in the same instance data block as from Step 1 (MB_DB parameter of the MB_COMM_LOAD block).
Execution and transition are the same as in Step 1.

The figure below shows a step (networks 6 and 7) with transition (network 8).


Fig. 06

The MB_ADDR parameter (see Network 6) can therefore also be used to change the slave to be addressed per step, which permits data to be exchanged with up to 32 slaves.

Download
The compressed file "MODBUS_RTU.zip" contains the sample project "MODBUS_RTU.ap10" for alternate data transfer between a master and a slave.
Unpack the "MODBUS_RTU.zip" file and open the sample project "MODBUS_RTU.ap10" with STEP 7 Basic V10.5 (>= SP2).
The version of the firmware of the SIMATIC S7-1200 controllers used is V1.0.2.
Download the project folders ("Master" and "Slave") into the controllers.
You can track the data transfer in the monitoring table.


For more information, check out Siemens website at http://support.automation.siemens.com/WW/view/en/47755811

Wednesday, May 11, 2011

Downloads
GSD File Profibus DP Slave CM 1242-5 (2011-05-06)
For CM 1242-5 (6GK7242-5DX300XE0, V1.0) a GSD file stands at
disposal for project planning in strange systems.
Here ( 3 KB ) you can download the GSD File....

Updates

Sales Release for S7-1200 Profibus Modules (2011-05-03)
For products: 6GK7242-5DX30-0XE0; 6GK7243-5DX30-0XE0
The new Profibus modules for S7-1200 are herewith released for
ordering by I IA SC IC. The delivery release is planned for April
29, 2011. ...
Delivery Release: SIMATIC HMI KP300 Basic mono PN (2011-05-05)
For products: 6AV6647-0AH11-3AX0
SIMATIC HMI is expanding its product range of SIMATIC HMI Basic
Panels with the KP300 Basic mono PN for basic operator control & monitoring tasks.
With immediate effect, the KP300 Basic mono PN is released for delivery. ...


Manuals / Operating Instructions

Operating Instructions Profibus DP Master CM-1243-5 (2011-04-28)
For products: 6GK7243-5DX30-0XE0
Edition: 04/2011 Drawing no.: C79000-G8976-C246-01 1294 KB
Operating Instructions Profibus DP Slave CM 1242-5 (2011-04-28)
For products: 6GK7242-5DX30-0XE0
Edition: 04/2011 Drawing no.: C79000-G8976-C245-01 1256 KB
SIMATIC S7 S7-1200 Programmable controller (2011-04-26) [36932465]
For products: 6ES7211-1AD30-0XB0; 6ES7211-1BD30-0XB0; 6ES72
Edition: 04/2011 System Manual Part no.: 6ES7298-8FA30-8BH0
Drawing no.: A5E02486680-03 16483 KB
SIMATIC S7-1200 Easy Book (2011-04-25) [39710145]
For products: 6ES7211-1AD30-0XB0; 6ES7211-1BD30-0XB0; 6ES72
Edition: 04/2011 Manual Part no.: 6ES7298-8FA30-8BQ0 Drawing no.:
A5E02486774-02 8984 KB
SIMATIC S7-1200 Programmable controller system manual Update to edition 04/2011 (2011-05-06)
For products: 6ES7298-8FA30-8BH0
Edition: 04/2011 Product Information Part no.: A5E03506807-01
Drawing no.: A5E03506807-01 126 KB

Tuesday, May 3, 2011

Siemens S7-1200 EX certified || 3 G Ex nA || T4




Siemens S7-1200 Certificate of Approval


  • To download full certificate and more, click HERE.





Tuesday, March 22, 2011

SCADA/REMOTE VIEWING CONNECTION WITH S7-1200 ON PROFINET!
Call us for live demo!






































Notes

* Restrictions,
- Only tags in the data block DB1 of your S7-1200 PLC can be accessed because the S7-200 only had one data block.
- DB1 in your S7-1200 PLC needs to be non-symbolic. Please uncheck the checkbox "Symbolic access only" when creating your DB1.

** SPAN APPROVED SCADA SYSTEM

# Artist illustrations for marketing purpose only, actual supplied products may differ from this leaflet/proposals/brochures

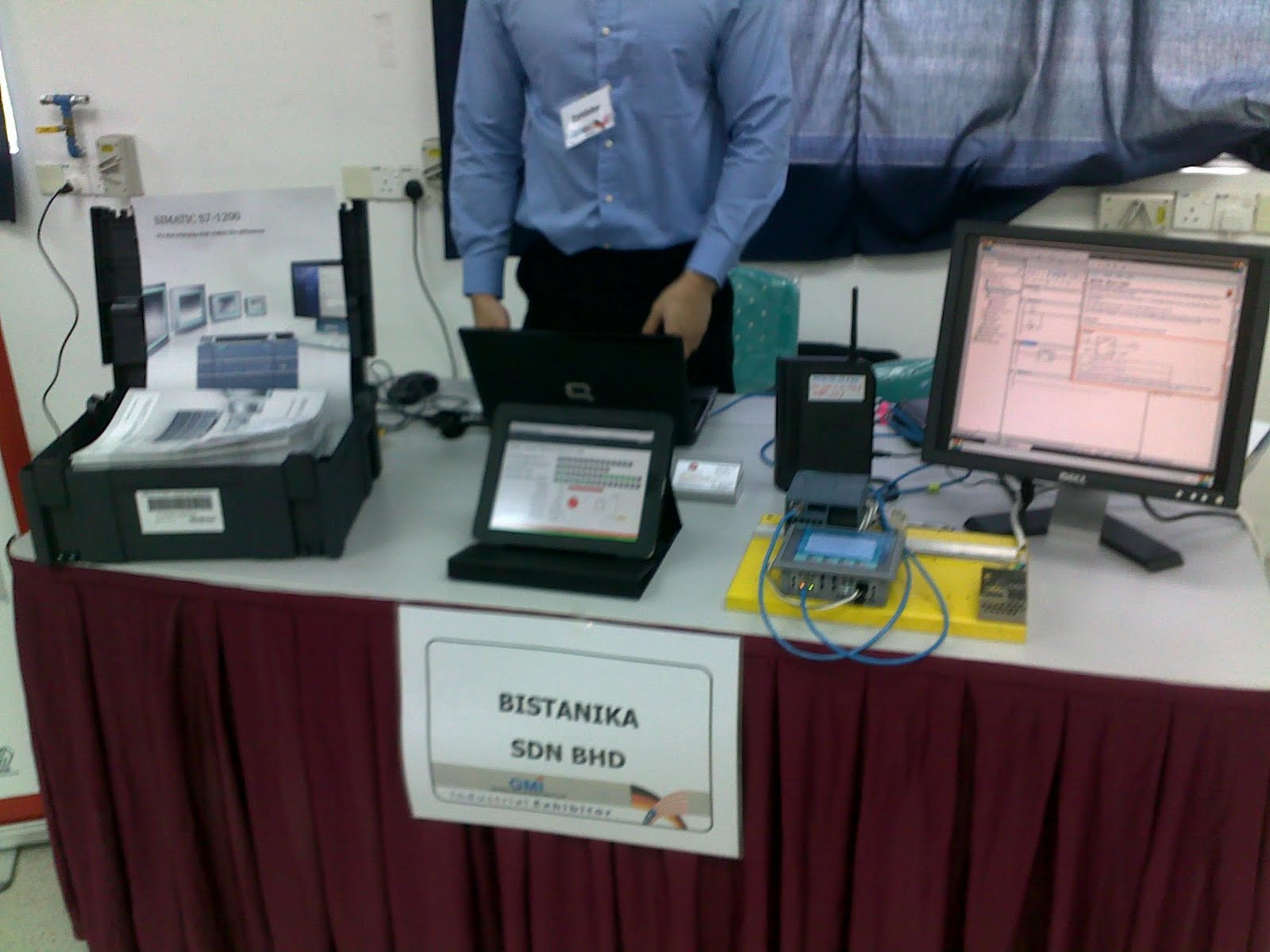

S7-1200 EXHIBTION AT GMI OPEN DAY ON 2011 MAC 19





Tuesday, March 8, 2011

SCADA/REMOTE VIEWING CONNECTION WITH S7-1200 ON PROFINET!
Call us for live demo!






































Notes

* Restrictions,
- Only tags in the data block DB1 of your S7-1200 PLC can be accessed because the S7-200 only had one data block.
- DB1 in your S7-1200 PLC needs to be non-symbolic. Please uncheck the checkbox "Symbolic access only" when creating your DB1.

** SPAN APPROVED SCADA SYSTEM

# Artist illustrations for marketing purpose only, actual supplied products may differ from this leaflet/proposals/brochures
